Description

When we have heavy loads to bear, keeping them secure and exactly where we want them is critical. The CamJam Tie Down Strap features an elegant design & high quality materials. It was built for functionality, ease of use, and ultra-security for your heavy loads.

The CamJam Tie Down features a high density weave polypropylene 1" wide strap that is securely attached with 4 bar tack stitches for high strength to a sturdy cast zinc alloy cam mechanism with an integrated protective pad underneath.

Loop Configuration: This fixed size loop configuration can be created when the free end of the webbing is constrained by the CamJam mechanism creating a loop to secure your load. This configuration is the basic and primary configuration and is similar to those produced by other general purpose cam-lock devices.

Lockout Configuration: The Lockout configuration extends the utility of the loop configuration by enabling the selective positioning of the CamJam mechanism along the webbing loop. Most other general purpose cam-lock devices are incapable of creating this type of configuration.

The lockout configuration also allows the device to be anchored to a location without requiring the engagement of the CamJam mechanism. For example, the lockout configuration enables the strap assembly to be positioned and secured to a vehicle roof rack prior to and irrespective of securing objects onto the rack.

It prevents the inadvertent movement or sliding of the strap assembly while arranging objects on the rack, or while tensioning the strap. This configuration enables locking tension to be applied to the webbing with up to a 3-to-1 mechanical tensioning advantage.

This feature is similar to, and within the working load levels induced by ratchet type devices. For example, drawing webbing through the device with an applied force of 100 lbs can induce up to 300 lbs of tension in the secured webbing.

PRODUCT DETAILS

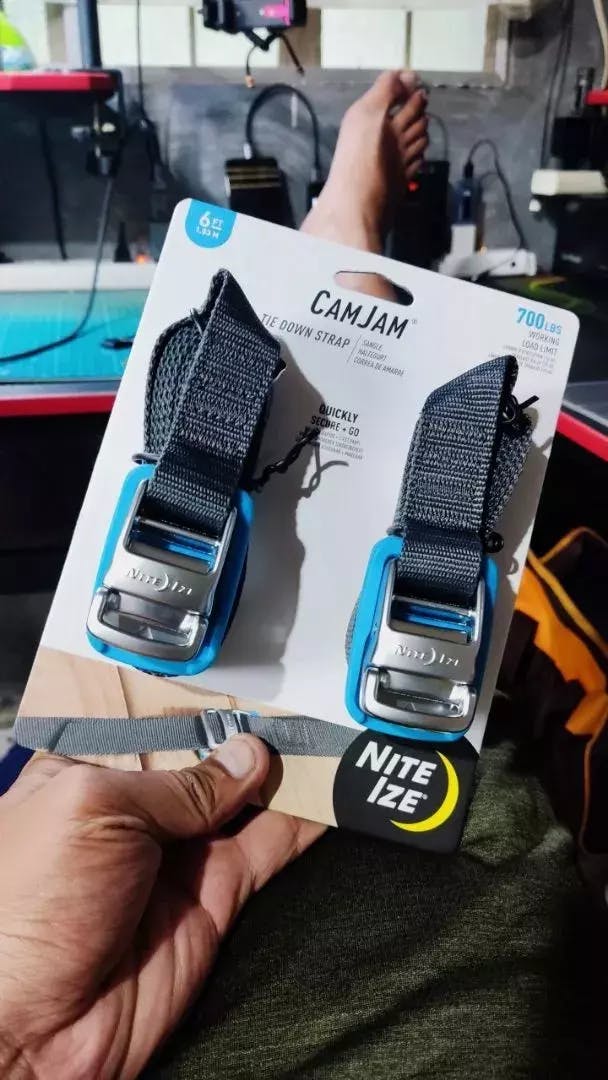

Heavy duty tie down straps available in 3 sizes - 6', 12', and 18' (1.83m, 3.66m, and 5.48m)

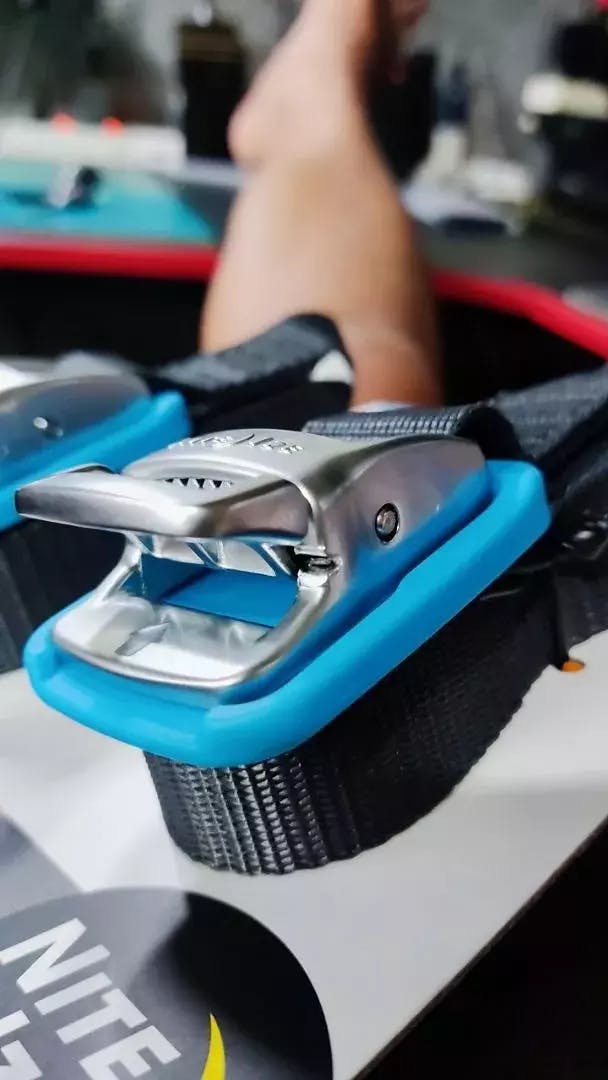

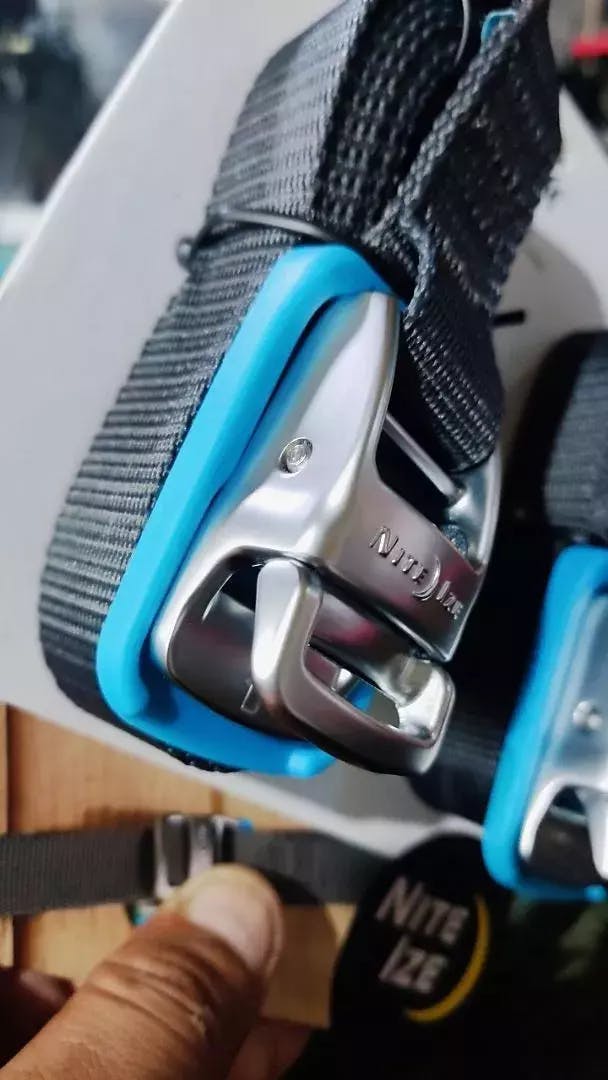

Die-cast zinc alloy CamJam tensioning mechanism with nickel plate finish and protective pad

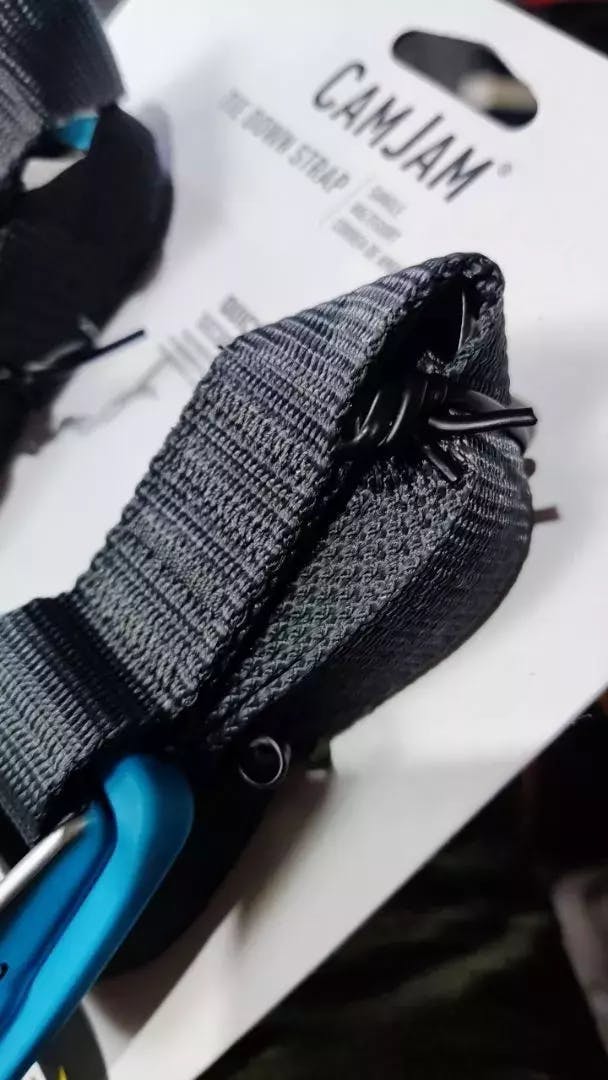

High strength 1" (2.54cm) wide waterproof, high density weave, polypropylene webbing
Sewn-in, color coded & numerically labeled tags allows for easy identification of strap length
Premium quality die-cast zinc alloy CamJam tensioning mechanism with nickel plate finish
Features die-cast zinc alloy housing + center pivot pin with stainless steel torsion spring that activates center hub with integrated webbing capture ring
Webbing capture ring on cam mechanism enables controlled release of tension to any applied load
Easy to achieve high tension, adjust and control the release without sudden, dangerous unloading
Multiple Tie-Down configurations for versatility - Loop Configuration & Lockout Configuration
Working Load Limit 700lb. (318kg)
Break Strength 2100lb. (953kg)
